BRASS EARTH TAGS FOR CABLE GLANDS
BRASS EARTH TAGS Ensure earth continuity is maintained between the Brass cable gland and the equipment . We can also produce Aluminium earth tags which should be used with Aluminium cable glands. These Brass earth tags (With or without screws) provide an earth bond attachment for a cable gland.As a standard practice Earth tags are manufactured in Brass but Stainless Steel earth tags are also available, but dimensions may differ slightly to those stated in the selection table below.The shape of Brass erath tags will vary for different sizes. These earth tags and other sheet metal components and parts are pressed from finest quality Brass sheets.

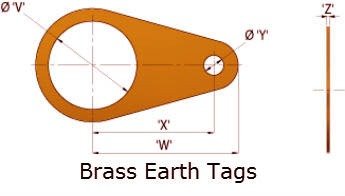

| BRASS EARTH TAGS DIMENSIONAL CHART | ||||
|---|---|---|---|---|
| Gland Thread Size ‘V’ | ‘Y’ | ‘W’ | ‘X’ | ‘Z’ |
| M20 | 6.72 | 39.5 | 33.2 | 1.4-1.6 |
| M25 | 6.85 | 45.6 | 36.4 | 1.4-1.6 |
| M32 | 12.6 | 52.1 | 40.8 | 1.4-1.6 |
| M40 | 13.4 | 59.7 | 44.2 | 1.4-1.6 |
| M50 | 13.5 | 78.8 | 58.1 | 1.4-1.6 |
| M63 | 13.5 | 87.5 | 66.6 | 1.4-1.6 |
| M75 | 13.5 | 93.6 | 72.9 | 1.4-1.6 |
| M80 | 14.0 | 128.2 | 104.2 | 1.4-1.6 |
| M90 | 14.0 | 128.2 | 104.2 | 1.4-1.6 |
| M100 | 14.0 | 128.2 | 104.2 | 1.9-2.1 |
| M110 | 13.5 | 136.2 | 115.2 | 1.9-2.1 |
| M115 | 13.5 | 141.2 | 120.2 | 1.9-2.1 |
| M120 | 13.5 | 143.2 | 122.2 | 1.9-2.1 |
| M130 | 13.5 | 153.2 | 128.2 | 1.9-2.1 |
| Sizes are in millimeters. | ||||
Over and above Brass earth tags we also offer from our factory in jamnagar other Brass cable glands accessories like Brass Lock nuts Brass reducing bushes Brass thread adapters Brass thread reducers PVC shrouds lock rings Brass stop plugs fiber sealing washers etc.
Frequently Asked Questions (FAQs) – Brass Earth Tags for Cable Glands
Q1: What are Brass Earth Tags, and why are they used in cable glands?
Brass Earth Tags are essential accessories for cable glands, providing an effective electrical grounding connection. They ensure proper earthing continuity by creating a low-resistance path between the cable gland and the grounding system, enhancing safety in electrical installations.
Q2: How do Brass Earth Tags improve electrical safety?
Brass Earth Tags help in dissipating fault currents and reducing the risk of electric shock or fire hazards. They act as protective grounding components by maintaining a reliable earth bond, ensuring compliance with electrical safety standards such as IEC, BS EN, and NEC.
Q3: What types of cable glands are compatible with Brass Earth Tags?
These earthing tags are designed for use with a variety of Brass, Stainless Steel, and Aluminum cable glands, including:
- BW, CW, and A2 cable glands for industrial applications.
- EMC (Electromagnetic Compatibility) cable glands to prevent interference.
- Flameproof and hazardous area glands for ATEX and IECEx-certified installations.
Q4: What sizes of Brass Earth Tags are available?
We manufacture Brass Earth Tags in standard sizes ranging from M16 to M100, PG 7 to PG 48, and NPT thread sizes. Custom sizes and non-standard dimensions can be produced upon request.
Q5: What material grades are used for manufacturing Brass Earth Tags?
Our Earth Tags are made from high-grade Brass alloys, such as:
- Brass CZ121 / C36000 – Free-cutting Brass with excellent machinability.
- DZR Brass (CW602N) – Dezincification-resistant for corrosive environments.
- Electro-Tinned Brass – For enhanced conductivity and oxidation resistance.
Q6: Are Brass Earth Tags corrosion-resistant?
Yes, Brass Earth Tags offer superior corrosion resistance, making them ideal for outdoor, marine, and high-humidity environments. For additional protection, they can be nickel-plated, electro-tinned, or coated with anti-corrosion finishes.
Q7: How are Brass Earth Tags installed with cable glands?
- Place the Earth Tag between the cable gland and the enclosure entry.
- Tighten the cable gland to ensure a secure electrical connection.
- Attach the earthing conductor to the tag using an appropriate lug or terminal.
- Verify grounding continuity using a resistance meter.
Q8: Do Brass Earth Tags comply with international electrical standards?
Yes, our Brass Earthing Tags conform to:
- BS 6121 – British standard for cable gland accessories.
- IEC 62444 – International standard for cable glands.
- ASTM B16 / B455 – Material composition and conductivity standards.
- UL Listed & RoHS Compliant – For environmental and safety compliance.
Q9: Can you provide custom Brass Earth Tags with private labeling?
Yes, we offer customized Earth Tags with:
- Engraved branding and serial numbers.
- Special plating or coatings for specific environmental conditions.
- Bulk packaging and OEM labeling.
Q10: How can I place an order for Brass Earth Tags?
You can visit our product page to explore our range of Brass Earth Tags for Cable Glands. For bulk orders, custom sizes, and technical inquiries, contact our sales team for expert guidance and competitive pricing.
