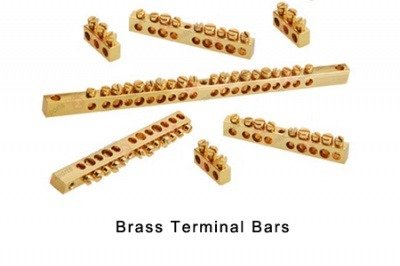

Brass Terminal Bars

Brass Terminal Bars

We are a leading manufacturer and supplier of a wide range of Brass Terminal Bars /Copper Terminal Bars / Brass Neutral Bars from high quality material and with multiple ways/tunnels with metric screws combination headed. Our Brass Terminals and Brass Terminal blocks are supplied to various OEMs manufacturing electrical switchgears control panels relays and electrical enclosures. Brass terminal bars and Copper neutral bars represent the cornerstone of reliable electrical distribution systems, providing secure connection points where multiple conductors converge within electrical panels, distribution boards, and control systems.

Material : CDA 360 CZ 121 is used for Brass terminal bars

Finish : CDA 360 CZ 121 is used for Brass terminal bars

Screws : Pan Phillips, Combination head Steel screws with plating

BRASS NEUTRAL BARS

Our Brass Neutral Bars and Brass terminal bars are made in different cross sections and lengths as per customer drawings.

FAQ Brass Terminal Bars, Brass Neutral Bars

Q: What exactly are Brass terminal bars , Brass Neutral bars and what function do they serve in electrical applications?

A: Brass terminal bars (also known as brass terminal blocks or brass connector bars) are solid copper alloy components designed to provide secure electrical connections where multiple wires need to be joined at a common point. They serve as distribution points in electrical systems, allowing currents to be safely distributed from a main power source to multiple circuits or devices. Their solid brass construction ensures excellent conductivity, corrosion resistance, and long-term durability in various electrical installations.

Q: What makes brass the preferred material for manufacturing high-quality Copper terminal bars , Brass Terminal bars Brass Neutral bar?

A: Brass is the preferred metal for terminal bars due to its exceptional combination of electrical properties. Brass offers superior electrical conductivity (typically 28% of copper’s conductivity), excellent corrosion resistance in diverse environments, high machinability for precision manufacturing, strong mechanical stability under temperature fluctuations, and resistance to thread stripping during installation and maintenance. Additionally, brass’s natural antimicrobial properties make it ideal for installations where hygiene considerations are important.

Q: What are the standard sizes and configurations available for Brass terminal bars?

A: Our brass terminal bars are available in multiple configurations to suit various electrical requirements. Standard sizes include 2-way, 4-way, 6-way, 8-way, 10-way, and 12-way terminals with current ratings from 15A to 100A. Terminal bar dimensions typically range from 15mm to 200mm in length depending on the number of terminals. Custom configurations with specific hole spacings, diameters, and overall dimensions can be manufactured to order for specialized applications or when retrofitting existing electrical systems.

Q: Are these Brass terminal bars compliant with international electrical standards and codes?

A: Yes, our Brass terminal bars Brass Terminals Copper Terminals Copper Terminal bars comply with major international electrical standards including IEC 60947-7-1 for terminal blocks, UL 1059 for terminal block requirements, and BS EN 60998 for connecting devices for low-voltage circuits. They’re manufactured to meet or exceed industry specifications for electrical safety, temperature ratings, and mechanical durability. Each product batch undergoes rigorous testing to ensure compliance with relevant electrical codes and standards before distribution.

Q: What installation environments are Brass terminal bars suitable for?

A: Brass terminal bars excel in diverse installation environments including residential electrical distribution panels, industrial control cabinets, HVAC systems, marine electrical systems, outdoor junction boxes, telecommunications equipment, and railway applications. Their exceptional corrosion resistance makes them particularly valuable in humid, coastal, or chemically aggressive environments where standard steel terminals might deteriorate. Their temperature stability also makes them suitable for installations experiencing frequent thermal cycling.

Q: What are the mounting options for these brass terminal bars?

A: Our brass terminal bars can be mounted using several methods, including direct surface mounting with screws through dedicated mounting holes, DIN rail mounting using compatible brackets, panel mounting inside electrical enclosures, or custom mounting solutions for specialized applications. Each terminal bar features pre-drilled mounting holes spaced according to standard electrical panel configurations, ensuring compatibility with most installation scenarios. For specific mounting requirements, our technical team can advise on the most appropriate mounting solution.

Q: How do brass terminal bars compare to alternatives like copper or stainless steel terminals?

A: Compared to alternatives, brass terminal bars offer a balanced combination of performance and cost-effectiveness. While pure copper terminals provide marginally better conductivity, they’re significantly more expensive and prone to oxidation. Stainless steel terminals offer excellent corrosion resistance but with much lower conductivity (approximately 3-5% of copper). Aluminum terminals are lighter but require special contact greases to prevent oxidation and have lower conductivity. Brass terminal bars provide the optimal balance of excellent conductivity, superior corrosion resistance, mechanical strength, and cost efficiency for most electrical applications.

Q: What wire gauges and cable types are compatible with these brass terminal bars?

A: Our brass terminal bars are designed to accommodate a wide range of wire gauges and cable types. Standard models accept wire sizes from 18 AWG (0.75mm²) up to 4/0 AWG (120mm²) depending on the specific terminal bar model. They’re compatible with solid conductors, stranded conductors, flexible cables, and even fine-stranded conductors with appropriate ferrules. Special versions are available for aluminum conductors which include anti-oxidation compounds to ensure reliable connections and prevent galvanic corrosion.

Q: What is the maximum voltage and current rating for these brass terminal bars?

A: Our standard brass terminal bars are rated for voltages up to 600V AC/DC with current ratings ranging from 15A to 100A depending on the specific model and cross-sectional area. Heavy-duty versions are available with ratings up to 150A for industrial applications. The temperature rating is typically 105°C (221°F), making them suitable for most residential, commercial, and industrial applications. It’s important to select terminal bars with appropriate ratings for your specific application to ensure safety and compliance with electrical codes.

Q: What maintenance is required for brass terminal bars in long-term installations?

A: Brass terminal bars require minimal maintenance when properly installed. Periodic visual inspections are recommended to check for signs of loosening, oxidation, or overheating. Connection points should be re-torqued according to manufacturer specifications approximately once every 1-2 years or following any system modifications. In harsh environments, a light application of electrical-grade contact preservative can provide additional protection against corrosion. Properly maintained brass terminal bars typically provide decades of reliable service without significant degradation in performance.

Q: Do you offer custom Brass terminal bar solutions for specialized applications?

A: Yes, we specialize in custom brass terminal bar solutions for unique or specialized applications. Our manufacturing capabilities allow for customization of terminal spacing, hole diameters, overall dimensions, terminal configurations, and specialized plating options. Custom terminal bars can be designed to meet specific current capacities, voltage ratings, or environmental constraints. Our engineering team works closely with clients to develop bespoke terminal solutions that precisely match application requirements, whether for new installations or as replacements for obsolete components.

Q: What are the key factors to consider when selecting the right Brass Terminals and Brass terminal bar for my application?

A: Key selection factors include: current capacity requirements (ensure the terminal bar is rated for your maximum expected load); voltage rating (must exceed your system’s maximum potential); wire size compatibility (terminals must accommodate your conductor sizes); environmental conditions (consider temperature extremes, humidity, and chemical exposure); space constraints (verify physical dimensions fit your installation space); connection type (screw, clamp, or push-in terminals); required certifications or standards compliance; and future expansion needs (select terminals with some capacity margin for potential system growth).

Q: How should Brass terminal bars be installed to ensure optimal electrical performance and safety?

A: For optimal installation: ensure mounting surfaces are clean and flat; torque all connections to manufacturer specifications using calibrated tools; use appropriate wire preparation techniques (proper stripping length and conductor treatment); apply anti-oxidation compound for aluminum conductors; ensure adequate spacing from other components for heat dissipation; protect from direct water exposure when used in damp locations; use appropriate wire ferrules for stranded conductors; and install proper barriers between adjacent terminal blocks of different voltages or functions. Following these practices ensures long-term reliability and compliance with electrical safety standards.
