Bronze Transformer Terminals Bronze Terminals and Bronze Eye bolts for Transformer bushings

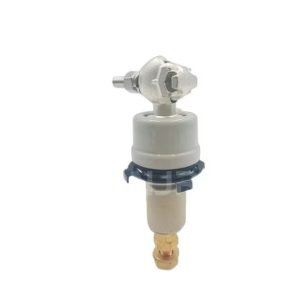

1.2kv 208A 20mm Double Eyebolt Flat Type ANSI Porcelain Transformer Bushing
Bronze Eye Bolts
Bronze eye bolts are critical components in transformer bushings, providing secure connection points while offering excellent conductivity and corrosion resistance. Our bronze eye bolts are manufactured to the highest industry standards.
Key Features:
- Material: High-grade bronze alloy (C51900, C52100, C95500, C 95400, C95600)
- Excellent electrical conductivity
- Superior corrosion resistance
- High mechanical strength
- Available with or without tin plating
| Specification | Standard Range | Custom Options |
|---|---|---|
| Size Range | M8 to M24 | Custom sizes available upon request |
| Thread Type | Metric, UNC, UNF | Special threads available |
| Surface Finish | Plain Bronze, Tin Plated | Custom finishes available |
Bronze Terminals
Our bronze terminals – Bronze Connectors for transformer bushings are engineered for optimal performance in high-voltage applications. Available with or without tin plating, these terminals ensure reliable electrical connections and long-term durability.
Technical Specifications For Bronze Ey:
- Material Composition: Bronze alloy (C51900, C52100, C95500, C 95400, C95600)
- Tensile Strength: 380-400 MPa
- Electrical Conductivity: >15% IACS
- Temperature Rating: -40°C to +105°C
Tin Plating Options for Transformer Bronze Eye Bolts Bronze Brass Terminals
Tin plating provides additional benefits:
- Enhanced corrosion resistance
- Improved solderability
- Reduced contact resistance
- Standard plating thickness: 5-15 μm
Applications
- Power transformers
- Distribution transformers
- Instrument transformers
- High-voltage switchgear
- Industrial electrical equipment
Quality Assurance
All our bronze components undergo rigorous testing and quality control measures:
- Material composition analysis
- Made at our own Bronze Casting foundry in India
- Dimensional inspection
- Plating thickness measurement (for tin-plated components)
- Mechanical strength testing
- Electrical conductivity verification
- We also make Bronze Spade terminals, NEMA spaces Bronze and Copper spades Spade connectors
