Transformer Grounding Clamps

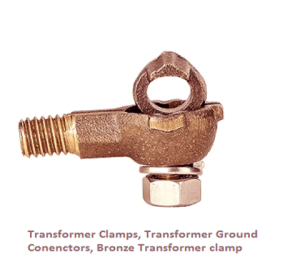

Bronze transformer Connectors grounding clamps

Transformer Grounding Clamps Bronze Transformer Grounding Connectors



Transformer Ground Clamps Bronze transformer Connectors grounding clamps

Grounding Clamps for transformerstransformer clamps



Transformer Ground clamps



Transformer Grounding Clamps Bronze Transformer Tank Connectors

Transformer grounding clamps are essential components in electrical systems, ensuring reliable grounding and safety during operation. These clamps are designed for use in grounding and bonding applications, providing a secure connection between the transformer and the ground system. Constructed with high-quality materials and precision engineering, transformer grounding clamps are critical for the safe dissipation of electrical currents and the protection of equipment and personnel.

• Bronze Eye bolt rotates to accommodate conductor in either vertical or horizontal direction
• 1/2” – 13 stud fi ts all standard EEI-NEMA
• No special tools required
Material
Casting: Bronze alloy
Eye Bolt: Bronze alloy
Hardware: Silicon bronze or stainless steel


How Transformer Grounding Clamps Work

Transformer grounding clamps create a low-resistance path for fault currents to flow safely into the ground. This reduces the risk of electrical shock, equipment damage, and fire caused by stray currents or lightning strikes. The clamps securely attach to the grounding conductor and the transformer, ensuring a robust and durable connection even under adverse environmental conditions.

  • Step 1: The clamp is fastened to the transformer’s grounding lug or bar.
  • Step 2: The grounding conductor is inserted into the clamp’s eye bolt or terminal assembly.
  • Step 3: The stainless-steel hardware is tightened to ensure a secure, vibration-resistant connection.
  • Step 4: Regular inspections ensure that the clamp maintains its integrity over time.

Construction and Materials of Transformer Ground Clamps – Transformer Ground Connectors

Transformer grounding clamps are meticulously designed for durability and performance. The key components include:

Component Material Features
Clamp Body High-strength bronze, Aluminum Bronze Excellent corrosion resistance and durability.
Eye Bolts Bronze, C51000 Phosphor Bronze Provides a secure grip on grounding conductors.
Terminal Assembly Bronze, C955, C954, C(56, C836, C833 Bronze Ensures efficient electrical conductivity.
Hardware Stainless Steel (SS 304/316) Resists rust and withstands harsh environments.

Material Grades:

  • Bronze Alloys: High conductivity and resistance to oxidation and wear.
  • Stainless Steel Hardware: Ensures long-term performance in outdoor and corrosive environments.

Thread Specifications

The threading in transformer grounding clamps ensures secure fastening and easy installation:

Thread Type Features
UNC (Unified Coarse) Provides robust strength for general use.
Metric Threads Compatible with international standards.
Custom Threads Available for specific application needs.

Applications

Transformer grounding clamps are versatile and used in a wide range of applications:

  • Electrical Transformers: Secure grounding for power distribution and transmission.
  • Substations: Ensures safety and reliability in high-voltage environments.
  • Industrial Facilities: Protects equipment and personnel in manufacturing and processing plants.
  • Renewable Energy Systems: Grounding for solar and wind power installations.
  • Lightning Protection Systems: Safely dissipates lightning strikes into the ground.

Key Features and Benefits

  • Durability: High-quality bronze construction for extended service life.
  • Corrosion Resistance: Withstands harsh environmental conditions.
  • Efficient Conductivity: Low-resistance path for fault currents.
  • Easy Installation: Designed for quick and secure attachment.
  • Low Maintenance: Resistant to wear and requires minimal upkeep.

Line Drawing Example (Insert a simple line drawing of a transformer grounding clamp showing the clamp body, eye bolt, terminal assembly, and stainless-steel hardware in a labeled schematic.)


Inspection and Maintenance

To ensure the reliability of transformer grounding clamps Transformer Grounding Connectors , follow these maintenance practices:

  1. Visual Inspections: Check for signs of corrosion, wear, or loose connections.
  2. Tighten Hardware: Ensure all bolts and screws are secure.
  3. Conductivity Testing: Verify that the clamp provides a low-resistance connection.
  4. Replace Worn Components: Replace any damaged or degraded parts promptly.

Why Choose Our Transformer Grounding Clamps?

  • Precision Engineering: Manufactured to exacting standards for superior performance.
  • High-Quality Materials: Bronze and stainless steel ensure long-lasting reliability.
  • Versatile Designs: Suitable for a wide range of grounding and bonding applications.
  • Custom Solutions: Tailored designs to meet specific customer requirements.
  • Compliance: Meets international electrical safety and grounding standards.

Contact Us

We are one of the largest Bronze casting foundries in India offering Bronze Transformer connectors, grounding lugs, Ground connectors. For more information about our Transformer Grounding Clamps, reach out to us.
