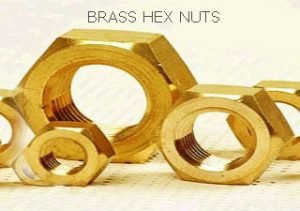

UNI 5587 Brass Nuts
BRASS UNI 5587 HEX NUTS DIN 5587 BRASS THICK NUTS BRASS FULL NUTS
| Thread Size Metric Full Nuts Brass | M3 x 0.5 | M4 x 0.7 | M5 x 0.8 | M6 x 1* | M8 x 1.25 * | M10 x 1.5 * | M12 x 1.75 * | M16 x 2 * | M18 x 2.5 * | M20 x 2.5 * | M22 x 2.5 * | |
| m | max. | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 18 | 20 | 22 |
| min. | 2.75 | 3.7 | 4.7 | 5.7 | 7.64 | 9.64 | 11.57 | 15.3 | 17.3 | 18.7 | 20.7 | |
|
m’ |
min. | 2.2 | 2.96 | 3.76 | 4.56 | 6.11 | 7.71 | 9.26 | 12.24 | 13.84 | 14.96 | 16.56 |
| s | max. | 5.5 | 7 | 8 | 10 | 13 | 17 | 19 | 24 | 27 | 30 | 32 |
| min. | 5.32 | 6.78 | 7.78 | 9.78 | 12.73 | 16.73 | 18.67 | 23.67 | 26.16 | 29.16 | 31 | |
|
e |
min. | 6.01 | 7.66 | 8.79 | 11.05 | 14.38 | 18.9 | 21.1 | 26.75 | 29.56 | 32.95 | 35.03 |
| da | min. | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 18 | 20 | 22 |
| max. | 3.45 | 4.6 | 5.75 | 6.75 | 8.75 | 10.8 | 13 | 17.3 | 19.5 | 21.6 | 23.7 | |
| dw | min. | 4.5 | 5.8 | 6.8 | 8.8 | 11.3 | 15.3 | 17.2 | 22.2 | 25.3 | 28.2 | 29.5 |
